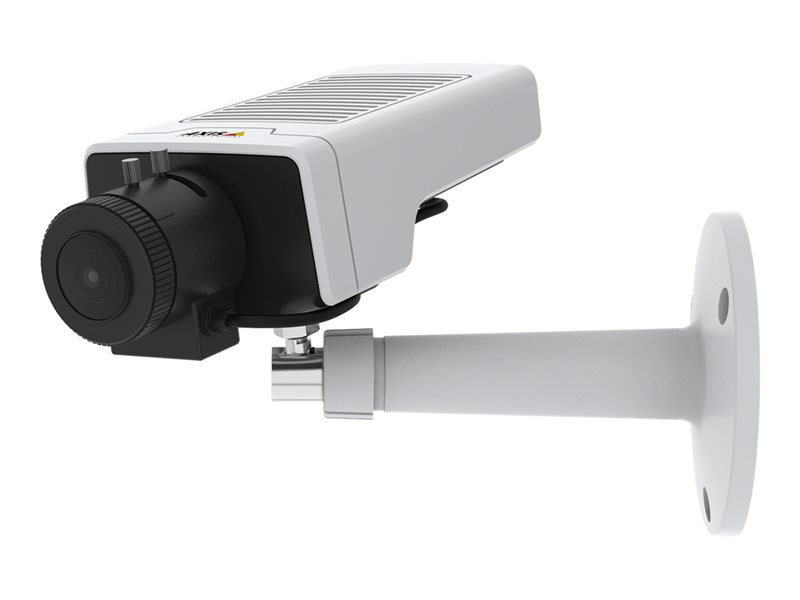

Axis Communications - AXIS M1135 MK II I-CS
Network surveillance camera - box - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - i-CS-mount - auto iris - vari-focal - audio - LAN 10/100 - H.264B, H.264M, H.264H, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG - DC 10 - 28 V / PoE Plus Class 3
Axis Communications
02580-001
N/A
7331021079663
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | AXIS M1135 MK II I-CS - network surveillance camera - box |
| Device Type | Network surveillance camera - fixed - box |
| Audio | Yes: two-way audio via edge-to-edge technology, built-in microphone |
| Dimensions (WxDxH) | 2.8 in x 5.9 in x 2.5 in |
| Weight | 8.46 oz |
| Color | White, NCS S 1002-B, black, NCS S 9000-N |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 2.9 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Optical Sensor Type | PS RGB CMOS - 1/2.9" - 2 MP |
| Minimum Illumination | 0.15 lux - color - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE ¦ 0.1 lux - color - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE |
| Focal Length Control | Vari-focal |
| Focal Length | 3.5 mm - 10 mm |
| Lens Mounting | I-CS-mount |
| Focus Adjustment | (min distance 2.6 ft) |
| Lens Iris | F/1.4 - auto iris (P-Iris) |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 10 - 28 V / PoE Plus Class 3 |
| Features | IR Corrected lens, remote zoom, remote focus, infrared-cut filter, Forensic WDR, Lightfinder technology, Machine learning processing unit (MLPU), Zipstream technology, 180° image rotation, 270° image rotation, 90° image rotation, Adaptive Bitrate (ABR), aspect ratio correction, auto gain control, barrel distortion correction, Corridor mode, digital PTZ function, exposure zone, fine tuning of behavior at low light, image mirror, image overlay, low latency mode, Multi-Bitrate (MBR), Privacy Mask Function, text overlay, Variable Bitrate (VBR), simplex audio, HTTPs encryption, IP address filtering, network speaker pairing, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, NAS-Ready, secure boot, secure keystore, signed firmware, VAPIX support, password protection, digest authentication, brute force delay protection, Axis Edge Vault |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -4 °F - 122 °F; 10 - 85% RH (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio via edge-to-edge technology, built-in microphone |
| Audio Formats | LPCM, AAC-LC, G.711, G.726, ADPCM, OPUS |
| Form Factor | Box |
| Connectivity Technology | Wired |
| Width | 2.8 in |
| Depth | 5.9 in |
| Height | 2.5 in |
| Weight | 8.46 oz |
| Localization | Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Digital input/output - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Included Accessories | AXIS T91A11 stand (white) |
| Compliant Standards | PVC-free, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, EMC, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, CAN/CSA-C22.2 No. 62368-1, IEC/EN/UL 62368-1, EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Color | White, NCS S 1002-B, black, NCS S 9000-N |
| Power | |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 3 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Object Analytics, AXIS Video Motion Detection |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Relative Humidity (operating) | 10 - 85% RH (non-condensing) |
| Camera | |
| Type | Color - Day&Night - fixed |
| Digital Video Format | H.264B, H.264M, H.264H, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 2 sec - 1/33500 sec |
| Minimum Illumination | 0.15 lux - color - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE ¦ 0.1 lux - color - F1.4 - 30 IRE ¦ 0.02 lux - B&W - F1.4 - 30 IRE |
| Digital Video Capture Resolution | 1920 x 1080, 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | IR Corrected lens, remote zoom, remote focus, infrared-cut filter, Forensic WDR, Lightfinder technology, Machine learning processing unit (MLPU), Zipstream technology, 180° image rotation, 270° image rotation, 90° image rotation, Adaptive Bitrate (ABR), aspect ratio correction, auto gain control, barrel distortion correction, Corridor mode, digital PTZ function, exposure zone, fine tuning of behavior at low light, image mirror, image overlay, low latency mode, Multi-Bitrate (MBR), Privacy Mask Function, text overlay, Variable Bitrate (VBR), simplex audio, HTTPs encryption, IP address filtering, network speaker pairing, user access log, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, NAS-Ready, secure boot, secure keystore, signed firmware, VAPIX support, password protection, digest authentication, brute force delay protection, Axis Edge Vault |
| Lens Construction | |
| Type | I-CS-mount - vari-focal |
| Optical Zoom | 2.9 x |
| Focal Length | 3.5 mm - 10 mm |
| Lens Iris | F/1.4 auto iris (P-Iris) |
| Min Focus Distance | 2.6 ft |
| Horizontal Field of View (degree) | 33 - 101 |
| Vertical Field of View (degree) | 18 - 53 |
| Image Sensor | |
| Type | 2 MP PS RGB CMOS 1/2.9" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, ARP, SOCKS, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
